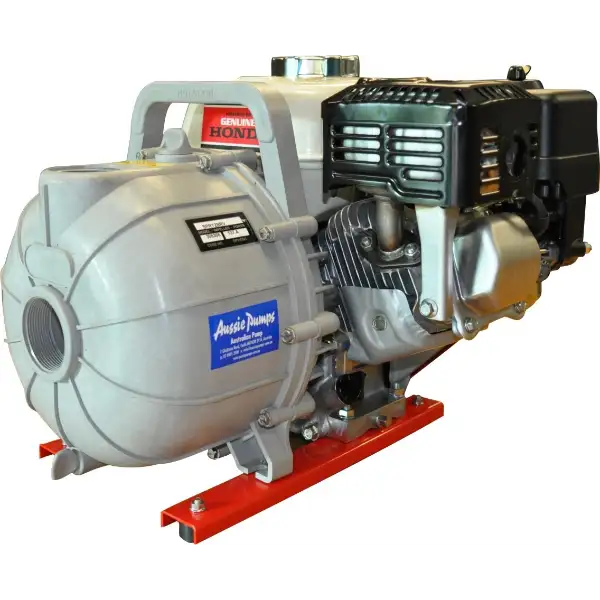

Aussie polypropylene 2" self-priming centrifugal chemical transfer pumps with integrated Honda and Yanmar engines deliver flows up to 835 liters per minute and heads up to 25 meters. Highly portable with a wide range of liquid compatibility.
ELECTRIC DRIVE … includes gal base
|
Model |
Motor |
Max flow (lpm) |
Max head (m) |
S/code |
|
SPRY2 electric |
2.2kW , 240V |
600 |
16 |
RSPRY2BRV/2.2K |
|
4kW , 415V |
RSPRY2BRV/4KW |
ENGINE DRIVE … full frame only on diesel option
|
Model |
Engine |
Max flow (lpm) |
Max head (m) |
S/code |
|
SPRY2 |
HONDA 6.5HP Recoil start |
835 |
25 |
RSPRY2BRV/GX200 |
|
YANMAR 4.8HP Recoil start Electric start |
835 |
25 |
RSPRY2BRV/L48 RSPRY2BRV/L48E |
BARE SHAFT (with pedestal)
|
Model |
Pedestal |
Max flow (lpm) |
Max head (m) |
S/code |
|
SPRY2 bare shaft |
Cast iron with ss shaft |
835 |
25 |
RSPRY2BRV/PED B |
ELECTRIC DRIVE
|
Model |
A (mm) |
B (mm) |
C (mm) |
Weight (kg) |
|
PRY2 with 2.2kW motor |
560 |
302 |
280 |
28 |
|
PRY2 with 4kW motor |
600 |
302 |
280 |
37 |
ENGINE DRIVE
|
Model |
A (mm) |
B (mm) |
C (mm) |
Weight (kg) |
|
PRY2/GX200 no frame |
490 |
370 |
390 |
22 |
|
PRY2 Yanmar Diesel |
550 |
520 |
460 |
40 |
BARE SHAFT
|
Model |
Length (mm) |
Height (mm) |
Width (mm) |
Weight (kg) |
|
PRY2 bare shaft with cast iron ped |
374 |
302 |
280 |
12 |
