Blackmer Frame M Centrifugal Pumps

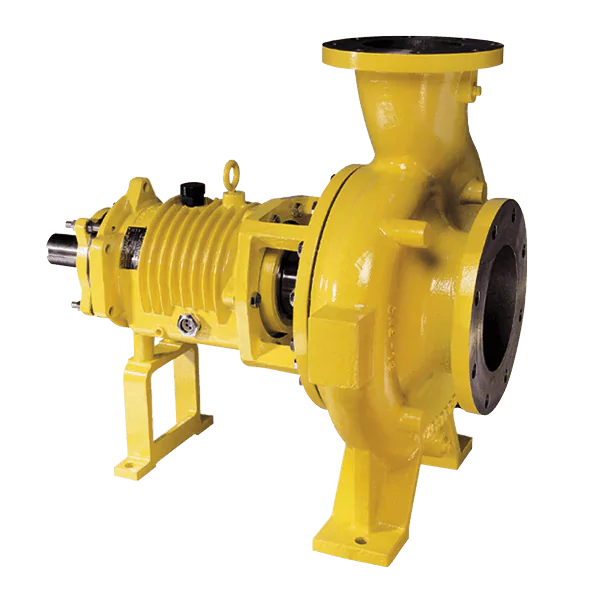

Blackmer Frame M Centrifugal Pump

The Frame M Centrifugal Pump integrates established design elements to ensure utmost reliability and extended durability, catering to the most challenging applications. Its unmatched design, coupled with the industry's leading warranty, positions the Frame M as the most economically efficient pumping system in the market.

With the lowest L3/D4 stiffness ratio among standard competitive size pumps, the Frame M Centrifugal Pump is engineered with the robust features akin to the Frame LD17, offering capacities up to 4,500 gpm.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Features
Specifications
Applications

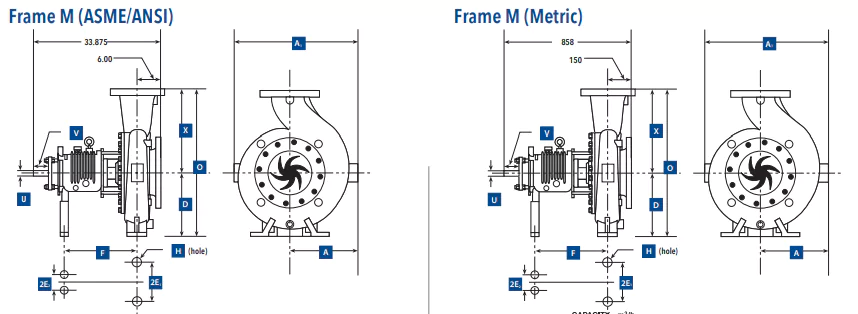

Dimensions

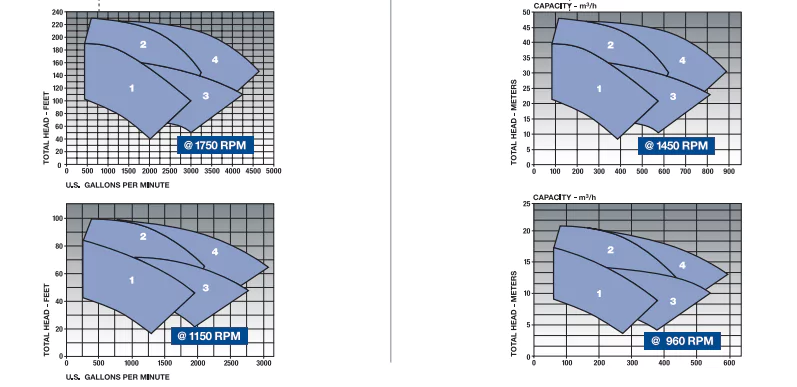

Performance Curve

Reliability that is engineered for the most challenging environments
The process pump with the lowest L3/D4 ratio in this size range is 19 (.87). M Frame
For high temperature applications, only ASME/ANSI B73.1 pump of such size offers centerline mount.
Left or right side discharge options
For high temperature applications, centerline mount is an option.
Discharge from the left or right side
Only large frame pumps with D-Flange and C-Frame capabilities. Takes motor frame sizes up to 315L or 449TSC.

Large Frame Pump
Lowest L3/D4 stiffness ratio of any pump in this size range at 19 (.87) Frame M
Only AMSE/ANSI 1 pump of its size that offers centerline mount for high temperature applications
Capacities up to 4,500 gpm
Operating temperature range from -40˚ to 400˚F (-40˚ to 204˚C)
Military shock standard S901 Grade A
High Temperature Series configurations available with some Frame M sizes

Chemicals
Mining de-watering
Water/wastewater
Liquid terminals

Frame M Pump – ASME/ANSI

	Pump Size	A1	A	D	2E1	2E2	F	H	O	U	V	X
1	6 x 8-13	25.50	14.00	14.50	16.00	9.00	18.75	0.875	30.50	2.375	4.00	16
2	6 x 8-15	27.25	14.75	14.50	16.00	9.00	18.75	0.875	32.50	2.375	4.00	18
3	8 x 10-13	27.25	15.25	14.50	16.00	9.00	18.75	0.875	32.50	2.375	4.00	18
4	8 x 10-15	28.75	15.75	14.50	16.00	9.00	18.75	0.875	33.50	2.375	4.00	19

All dimensions are in inches.

Frame M Pump – Metric

	Pump Size	A1	A	D	2E1	2E2	F	H	O	U	V	X
1	6 x 8-13	648	356	368	406	229	476	22	775	60	102	406
2	6 x 8-15	692	375	368	406	229	476	22	826	60	102	457
3	8 x 10-13	692	387	368	406	229	476	22	826	60	102	457
4	8 x 10-15	730	400	368	406	229	476	22	851	60	102	483
