Perolo Hydrogen Peroxide Manlid

Perolo Hydrogen Peroxide Manlid

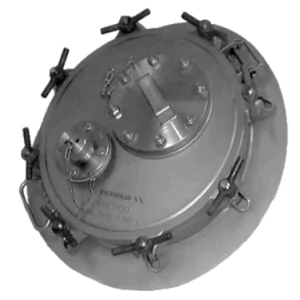

Perolo ND500 Hydrogen Peroxide Manlid

The ND500 Multido, with or without a compensated neckring, is specifically made for carrying hydrogen peroxide. A 2′′ (ND50) breather and a filling port are included on the manlid. On request, modifications are possible.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

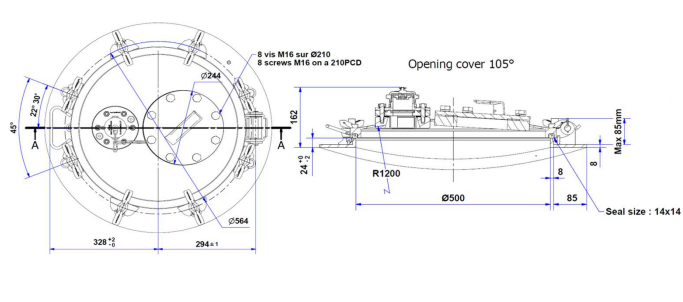

Nominal diameter	500 mm (20'')
Weight	47 Kg
Fastening points	8
Working Pressure	4 Bar
Test Pressure	6 Bar
Working Temperature	-40° to + 200°C

ADR / RID / IMDG / ASME / EN14025
Lloyd's Register and Bureau Veritas

Coverlid	11 15 77 10 00
Neckring	VS54D88A0G1100S
H2O2 Breather	11 15 13 00 00
Coverlid seal PTFE/EPDM	11 13 75 00 19
Swingbolt ass. (58mm)	12 93 86 92 00
Swingbolt ass. (83mm)	12 93 86 91 00
Hinge kit	12 13 68 91 00

Made of (material)	316L / 1.4404 stainless steel manlid
Seal material	seal not included
Neckring height	24 mm - low profile design
Neckring thickness	8 mm
Fastening	Swingbolts with captive wing nuts
Perfect tightness	Trapezoïdal seal groove - Seal 14x14

Complete ND500 Multido manlid - stainless steel - working pressure 4 Bar - 8 fastening points - low profile - R= 1100

11 15 77 00 00
