3" 90° Chemflow Footvalve

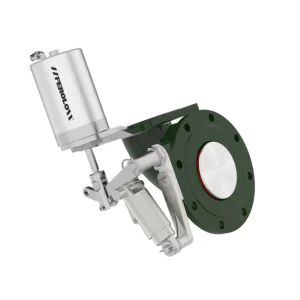

Perolo 3" 90° Chemflow Footvalve

A CHEMFLOW 90° footvalves by PEROLO is available for the bottom discharge of corrosive chemicals. These CHEMFLOW have a HALAR-coated body and C276 Hastelloy or Titanium poppet, push rod, and spindle, which ensures a high level of corrosion resistance. available in manual or pneumatic versions.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Nominal diameter	83 mm (3")
Weight	9.1 Kg
Inlet flange drilling	8 x Ø14 x 178 PCD
Outlet flange drilling	4 x Ø18 x 160 PCD
Working Pressure	4 bar
Test Pressure	6 Bar
Pneumatic Air Pressure	5 Bar
Air Inlet	Ø6
Working Temperature	-40° to +150°C
Design Temperature	-40° to +190°C

ADR / IMDG / RID / EN14433
Bureau Veritas

Weld-in flange	11 90 59 00 00
Inlet seal	12 91 20 00 00
Outlet seal	12 91 39 00 00
Stud kit	17 11 03 92 00

Made of (material)	Body: 316/1.4408/CF8M & HALAR coated or 904L without halar coating Poppet, pushrod & spindle: Hastelloy C276 or Titanium
Operation	St. St. spring return actuator or hand operated
Outlet Angle	90°
Footvalve spring	Spring outside the tank allows easier cleaning
