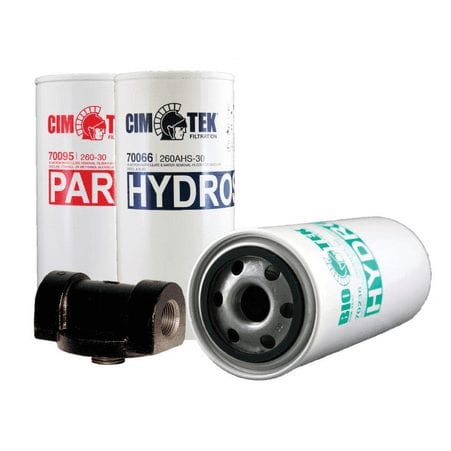

Cim-Tek 260 Series Extended-Life Filters
Cellulose and Hydrosorb® filters are for use with gasoline, diesel, biodiesel blends up to B20, or ultra-low sulfur diesel (ULSD). Microglass and Hydroglass filters are for use with biodiesel blends up to B100 (BMG & BHG). For use on above-ground storage tanks, above-ground gravity flow dispensing, transfer tanks, day-use tanks, transfer pumps & fuel dispensers
Benefits & Design Features
- 18 gpm (68.1 lpm) maximum flow
- 50 psi (3.4 bar) maximum working pressure
- Water detection and particulate contamination removal media in a single unit
- 10 micron and 30 micron available
- Pre-Lubed Gaskets standard
- Microglass Filters have a higher dirt-holding capacity for longer life
- Hydroglass filters have the same dirt-holding capabilities as Microglass filters plus the water absorbing properties of Hydrosorb filters.
-
Original Products -
Warranty Against Defects -
Returns & Refunds Policy -
Ships Worldwide -
Dedicate Support
- Description
- Brand
- 260 Series Particulate
- 260 Series Hydrosorb
- 1″-12 & 1 3/8″-12 Thread Size
- 3 3/4″ Diameter
- Extended-Life Filters
Cim-Tek
Ali Yaqoob Trading Co. LLC is an authorized full service distributor of Cim-Tek products. Cim-Tek, is an innovative, customer driven manufacturer of filtration products and related equipment for petroleum, industrial, bio-fuel, heavy duty applications.
Ordering Information
Part No. |
Model No. |
Description |
| 70094 |
260-10 |
Spin-On Filter for Particulate Removal. 10 Micron Resin-Impregnated Cellulose Media. (1″–12 UNF Thread) |
| 70095 | 260-30 | Spin-On Filter for Particulate Removal. 30 Micron Resin-Impregnated Cellulose Media. (1″–12 UNF Thread) |
Adaptors
Part No. |
Material |
Description |
Fuel Ports |
Nose |
Use With |
| 50181 | Aluminum | Single Adaptor | 3/4″ NPT | 1″–12 UNF | All Above |
| 50003 | Cast-Iron | Single Adaptor | 3/4″ NPT | 1″–12 UNF | All Above |
| 50002 | Cast-Iron | Single Adaptor | 1″ NPT | 1″–12 UNF | All Above |
| 50005 | Aluminum | Single Adaptor | 1 1/2″ NPT | 1″–12 UNF | All Above |
| 50006 | Aluminum | Double Adaptor | 1 1/2″ NPT | 1″–12 UNF | All Above |
| 50015 | Cast-Iron | Single Adaptor | 1 1/2″ NPT | 1″–12 UNF | All Above |
NOTE: See adaptor page for additional details.
Replacement Gasket
| Part No. | Description |
| 90025 | Buna-N Pre-Lubed Gasket Used On All Above |
Ordering Information
Part No. |
Model No. |
Description |
|
70062 |
260HS-10 |
Spin-On Filter for Water Detection and Particulate Removal with 10 Micron Hydrosorb® Media. (1″–12 UNF Thread) |
| 70067 | 260HS-30 | Spin-On Filter for Water Detection and Particulate Removal with 30 Micron Hydrosorb® Media. (1″–12 UNF Thread) |
| 70061 | 260AHS-10 | Spin-On Filter for Water Detection and Particulate Removal with 10 Micron Hydrosorb® Media. (1 3/8″–12 UNF Thread) |
| 70066 | 260AHS-30 | Spin-On Filter for Water Detection and Particulate Removal with 30 Micron Hydrosorb® Media. (1 3/8″–12 UNF Thread) |
Adaptors
Part No. |
Material |
Description |
Fuel Ports |
Nose |
Use With |
| 50181 | Aluminum | Single Adaptor | 3/4″ NPT | 1″–12 UNF | 260HS |
| 50003 | Cast-Iron | Single Adaptor | 3/4″ NPT | 1″–12 UNF | 260HS |
| 50002 | Cast-Iron | Single Adaptor | 1″ NPT | 1″–12 UNF | 260HS |
| 50004 | Cast-Iron | Single Adaptor | 1″ NPT | 1 3/8″–12 UNF | 260AHS |
| 50005 | Aluminum | Single Adaptor | 1 1/2″ NPT | 1″–12 UNF | 260HS |
| 50006 | Aluminum | Double Adaptor | 1 1/2″ NPT | 1″–12 UNF | 260HS |
| 50015 | Cast-Iron | Single Adaptor | 1 1/2″ NPT | 1″–12 UNF | 260HS |
Replacement Gasket
Part No. |
Description |
| 90025 | Buna-N Pre-Lubed Gasket Used On All Above |
