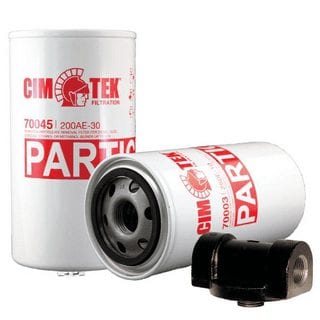

Cim-Tek 200-250 Series Cellulose Filters
Particulate filtration. For use with gasoline, diesel, biodiesel blends up to B20, or ultra-low sulfur diesel (ULSD). For use on above-ground storage tanks, above-ground gravity flow dispensing, transfer tanks, and day-use tanks. Graviy flow applications, transfer pumps & fuel dispensers.
Benefits & Design Features
- Up to 25 gpm (94.6 lpm) maximum flow
- 50 psi (3.4 bar) maximum working pressure
- Various micron media(s) available.
- Pre-Lube gaskets
- Removes Common containments such as dirt, dust, and rust. Drain for easy water removal.
- Drain for easy water removal
-
Original Products -
Warranty Against Defects -
Returns & Refunds Policy -
Ships Worldwide -
Dedicate Support
- Description
- Brand
- 200 Series Particulate
- 250 Series Particulate
- 1″-12 & 1 3/8″-12 Thread Size
- 3 3/4″ Diameter
- Filters With & Without Drain
Cim-Tek
Ali Yaqoob Trading Co. LLC is an authorized full service distributor of Cim-Tek products. Cim-Tek, is an innovative, customer driven manufacturer of filtration products and related equipment for petroleum, industrial, bio-fuel, heavy duty application
Ordering Information
Part No. |
Model No. |
Description |
| 70002 | 200E-10 | Spin-On Filter with Draincock for Particulate Removal. 10 Micron Resin-Impregnated Cellulose Media. (1″–12 UNF Thread) |
| 70046 | 200E-30 | Spin-On Filter with Draincock for Particulate Removal. 30 Micron Resin-Impregnate Cellulose Media. (1″–12 UNF Thread) |
| 70004 | 200AE-10 | Spin-On Filter with Draincock for Particulate Removal. 10 Micron Resin-Impregnated Cellulose Media. (1 3/8″–12 UNF Thread) |
| 70045 | 200AE-30 | Spin-On Filter with Draincock for Particulate Removal. 30 Micron Resin-Impregnated Cellulose Media. (1 3/8″–12 UNF Thread) |
Adaptors
Part No. |
Material |
Description |
Fuel Ports |
Nose |
Use With |
| 50181 | Aluminum | Single Adaptor | 3/4″ NPT | 1″–12 UNF | 200E |
| 50003 | Cast-Iron | Single Adaptor | 3/4″ NPT | 1″–12 UNF | 200E |
| 50002 | Cast-Iron | Single Adaptor | 1″ NPT | 1″–12 UNF | 200E |
| 50004 | Cast-Iron | Single Adaptor | 1″ NPT | 1 3/8″–12 UNF | 200AE |
| 50005 | Aluminum | Single Adaptor | 1 1/2″ NPT | 1″–12 UNF | 200E |
| 50006 | Aluminum | Double Adaptor | 1 1/2″ NPT | 1″–12 UNF | 200E |
| 50015 | Cast-Iron | Single Adaptor | 1 1/2″ NPT | 1″–12 UNF | 200E |
| 50001 | Cast-Iron | 200C Cap Off for
1″–12 UNF Nose Adaptor |
N/A | 1″–12 UNF | 200E |
Replacement Gasket
Part No. |
Description |
| 90025 | Buna-N Pre-Lubed Gasket Used On All Above |
Ordering Information
Part No. |
Model No. |
Description |
| 70819 |
250E-02 |
Spin-On Filter without Draincock for Particulate Removal. 2 Micron Cellulose/Microglass Blended Media. (1″–12 UNF) |
| 70003 | 250E-10 | Spin-On Filter without Draincock for Particulate Removal. 10 Micron Resin-Impregnated Cellulose Media. (1″–12 UNF) |
|
70088 |
250E-30 |
Spin-On Filter without Draincock for Particulate Removal. 30 Micron Resin-Impregnated Cellulose Media. (1″–12 UNF) |
| 70821 | 250AE-02 | Spin-On Filter without Draincock for Particulate Removal. 2 Micron
Cellulose/Microglass Blended Media. (1 3/8″–12 UNF) |
| 70005 | 250AE-10 | Spin-On Filter without Draincock for Particulate Removal. 10 Micron Resin-Impregnated Cellulose Media. (1 3/8″–12 UNF) |
| 70089 | 250AE-30 | Spin-On Filter without Draincock for Particulate Removal. 30 Micron Resin-Impregnated Cellulose Media. (1 3/8″–12 UNF) |
Adaptors
Part No. |
Material |
Description |
Fuel Ports |
Nose |
Use With |
| 50181 | Aluminum | Single Adaptor | 3/4″ NPT | 1″–12 UNF | 250E |
| 50003 | Cast-Iron | Single Adaptor | 3/4″ NPT | 1″–12 UNF | 250E |
| 50002 | Cast-Iron | Single Adaptor | 1″ NPT | 1″–12 UNF | 250E |
| 50004 | Cast-Iron | Single Adaptor | 1″ NPT | 1 3/8″–12 UNF | 250AE |
| 50005 | Aluminum | Single Adaptor | 1 1/2″ NPT | 1″–12 UNF | 250E |
| 50006 | Aluminum | Double Adaptor | 1 1/2″ NPT | 1″–12 UNF | 250E |
| 50015 | Cast-Iron | Single Adaptor | 1 1/2″ NPT | 1″–12 UNF | 250E |
Replacement Gasket
Part No. |
Description |
| 90025 | Buna-N Pre-Lubed Gasket Used On All Above |
