Easy View 2.0 Nozzle

Piusi Easy View 2.0 Nozzle

The MCO 2.0 version of the EASY OIL nozzle is called the PIUSI EASY VIEW 2.0. A remote display that indicates the count made by the GPV 2.0 is attached to this manual nozzle, which can dispense a wide range of oils.

Original Products
Warranty Against Defects
Returns & Refunds Policy
Ships Worldwide
Dedicate Support

Need Help? Call + 971 4 3330105

Email Your Query

Balanced Valve
Light Pressure Lever
Ergonomic Grab
Built-in Filter
Built-in Lever Lock

Flow Rate: Up To 30 L/min
Operating Pressure: 70 Bar
Connection: Zigbee System

The key to the dispensing system is the clear dialogue between GPV 2.0 and the entire MCO 2.0 system, plus the wireless communication between the GPV 2.0 solenoid valve and the EASY VIEW 2.0 nozzle. Optimized integration down to the tiniest detail.
The nozzle design has been further improved.
High strength and performance are the core properties of the Easy view nozzle.
EASY VIEW 2.0 is a more practical and intelligent nozzle. The large size display
shows the dispensing data transmitted on a wireless connection (zigbee) from the associated GPV 2.0. This means the nozzle no longer needs an internal flow meter, resulting in significant weight reduction and less risk of damage.

*PACKAGING*
CODE	WEIGHT		PACKAGING
CODE	KG	LBS	MM	INCH	PCS/PALLET	PCS/BOX
F00779010	1,16		450X180X90		-	1
F00779000	1,16		450X180X90		-	1

Easy View 2.0 Nozzle
Instruction Manual

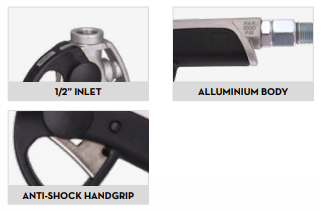

Body: Alluminium
Valve: Nbr, Nickel Plated Steel, Brass

*TECHNICAL DATA*
CODE	DESCRIPTION	FLUIDS TYPE	FLOW RATE	CONNECTION	INLET
			L/MIN
F00779010	EASY VIEW RIGID	O	UP TO 30	ZIGBEE (TO GPV 2.0)	1/2” BSP
F00779000	EASY VIEW FLEXIBLE	O	UP TO 30	ZIGBEE (TO GPV 2.0)	1/2” BSP
